Getting started by Example: Optimization of Reaction Conditions

In this example we take on a reaction condition optimization problem: Suppose you have some simple reaction where two ingredients A and B react to C.

Our reactors can be temperature controlled, and we can use different solvents. Furthermore, we can dilute our reaction mixture by using a different solvent volume. parameters like the temperature or the solvent volume are continuous parameters, where we have to set lower and upper bounds for. The temperature can be controlled between 0 and 60°C and the solvent volume between 20 and 90 ml.

Parameters like the use of which solvent, where there’s a choice of either this or that, are categorical parameters. Here we can choose between MeOH, THF and Dioxane.

For now we only wish top optimize the Reaction yield, making this a single objective optimization problem.

Below we’ll see how to perform such an optimization using bofire, Utilizing a Single Objective Bayesian Optimization (SOBO) Strategy

# python imports we'll need in this notebook
import os
import time

import numpy as np
import pandas as pd


SMOKE_TEST = os.environ.get("SMOKE_TEST")
print(f"SMOKE_TEST: {SMOKE_TEST}")

SMOKE_TEST: 1

Setting up the optimization problem as a Reaction Domain

from bofire.data_models.domain.api import Domain, Inputs, Outputs
from bofire.data_models.features.api import (  # we won't need all of those.
    CategoricalInput,
    ContinuousInput,
    ContinuousOutput,
)

# We wish the temperature of the reaction to be between 0 and 60 °C
temperature_feature = ContinuousInput(key="Temperature", bounds=[0.0, 60.0], unit="°C")

# Solvent Amount
solvent_amount_feature = ContinuousInput(key="Solvent Volume", bounds=[20, 90])

# we have a couple of solvents in stock, which we'd like to use
solvent_type_feature = CategoricalInput(
    key="Solvent Type",
    categories=["MeOH", "THF", "Dioxane"],
)


# gather all individual features
input_features = Inputs(
    features=[
        temperature_feature,
        solvent_type_feature,
        solvent_amount_feature,
    ],
)

# outputs: we wish to maximize the Yield
# import Maximize Objective to tell the optimizer you wish to optimize
from bofire.data_models.objectives.api import MaximizeObjective


objective = MaximizeObjective(
    w=1.0,
)
yield_feature = ContinuousOutput(key="Yield", objective=objective)
# create an output feature
output_features = Outputs(features=[yield_feature])

objective

MaximizeObjective(type='MaximizeObjective', w=1.0, bounds=[0, 1])

# we now have
print("input_features:", input_features)
print("output_features:", output_features)

input_features: type='Inputs' features=[ContinuousInput(type='ContinuousInput', key='Temperature', unit='°C', bounds=[0.0, 60.0], local_relative_bounds=None, stepsize=None, allow_zero=False), CategoricalInput(type='CategoricalInput', key='Solvent Type', categories=['MeOH', 'THF', 'Dioxane'], allowed=[True, True, True]), ContinuousInput(type='ContinuousInput', key='Solvent Volume', unit=None, bounds=[20.0, 90.0], local_relative_bounds=None, stepsize=None, allow_zero=False)]
output_features: type='Outputs' features=[ContinuousOutput(type='ContinuousOutput', key='Yield', unit=None, objective=MaximizeObjective(type='MaximizeObjective', w=1.0, bounds=[0, 1]))]

# The domain is now the object that holds the entire optimization problem / problem definition.
domain = Domain(
    inputs=input_features,
    outputs=output_features,
)

# you can now have a pretty printout of your domain via
(domain.inputs + domain.outputs).get_reps_df()

	Type	Description
Solvent Volume	ContinuousInput	[20.0,90.0]
Temperature	ContinuousInput	[0.0,60.0]
Solvent Type	CategoricalInput	3 categories
Yield	ContinuousOutput	ContinuousOutputFeature

# and you can access your domain features via
for (
    feature_key
) in domain.inputs.get_keys():  # this will get all the feature names and loop over them
    input_feature = domain.inputs.get_by_key(
        feature_key,
    )  # we can extract the individual feature object by asking for it by name
    print(feature_key, "|", input_feature)

Solvent Volume | [20.0,90.0]
Temperature | [0.0,60.0]
Solvent Type | 3 categories

# as well as the output features as
# and you can access your domain features via
for feature_key in (
    domain.outputs.get_keys()
):  # this will get all the feature names and loop over them
    output_feature = domain.outputs.get_by_key(
        feature_key,
    )  # we can extract the individual feature object by asking for it by name
    print(feature_key, " | ", output_feature.__repr__())

Yield  |  ContinuousOutput(type='ContinuousOutput', key='Yield', unit=None, objective=MaximizeObjective(type='MaximizeObjective', w=1.0, bounds=[0, 1]))

(domain.inputs + domain.outputs).get_reps_df()

	Type	Description
Solvent Volume	ContinuousInput	[20.0,90.0]
Temperature	ContinuousInput	[0.0,60.0]
Solvent Type	CategoricalInput	3 categories
Yield	ContinuousOutput	ContinuousOutputFeature

Import a toy Reaction to play around with

We’ve prepared a reaction emulator, which you can use to emulate a real experiment below.

# Reaction Optimization Notebook util code
T0 = 25
T1 = 100
e0 = np.exp((T1 + 0) / T0)
e60 = np.exp((T1 + 60) / T0)
de = e60 - e0

boiling_points = {  # in °C
    "MeOH": 64.7,
    "THF": 66.0,
    "Dioxane": 101.0,
}
density = {  # in kg/l
    "MeOH": 0.792,
    "THF": 0.886,
    "Dioxane": 1.03,
}
# create dict from individual dicts
descs = {
    "boiling_points": boiling_points,
    "density": density,
}
solvent_descriptors = pd.DataFrame(descs)


# these functions are for faking real experimental data ;)
def calc_volume_fact(V):
    # 20-90
    # max at 75 = 1
    # min at 20 = 0.7
    # at 90=0.5
    x = (V - 20) / 70
    x = 0.5 + (x - 0.75) * 0.1 + (x - 0.4) ** 2
    return x


def calc_rhofact(solvent_type, Tfact):
    #  between 0.7 and 1.1
    x = solvent_descriptors["density"][solvent_type]
    x = (1.5 - x) * (Tfact + 0.5) / 2
    return x.values


def calc_Tfact(T):
    x = np.exp((T1 + T) / T0)
    return (x - e0) / de


# this can be used to create a dataframe of experiments including yields
def create_experiments(domain, nsamples=100, A=25, B=90, candidates=None):
    Tf = domain.inputs.get_by_key("Temperature")
    Vf = domain.inputs.get_by_key("Solvent Volume")
    typef = domain.inputs.get_by_key("Solvent Type")
    yf = domain.outputs.get_by_key("Yield")
    if candidates is None:
        T = np.random.uniform(low=Tf.lower_bound, high=Tf.upper_bound, size=(nsamples,))
        V = np.random.uniform(low=Vf.lower_bound, high=Vf.upper_bound, size=(nsamples,))
        solvent_types = [
            domain.inputs.get_by_key("Solvent Type").categories[np.random.randint(0, 3)]
            for i in range(nsamples)
        ]
    else:
        nsamples = len(candidates)
        T = candidates["Temperature"].values
        V = candidates["Solvent Volume"].values
        solvent_types = candidates["Solvent Type"].values

    Tfact = calc_Tfact(T)
    rhofact = calc_rhofact(solvent_types, Tfact)
    Vfact = calc_volume_fact(V)
    y = A * Tfact + B * rhofact
    y = 0.5 * y + 0.5 * y * Vfact
    # y = y.values
    samples = pd.DataFrame(
        {
            Tf.key: T,
            Vf.key: V,
            yf.key: y,
            typef.key: solvent_types,
            "valid_" + yf.key: np.ones(nsamples),
        },
        # index=pd.RangeIndex(nsamples),
    )
    samples.index = pd.RangeIndex(nsamples)
    return samples


def create_candidates(domain, nsamples=4):
    experiments = create_experiments(domain, nsamples=nsamples)
    candidates = experiments.drop(["Yield", "valid_Yield"], axis=1)
    return candidates


# this is for evaluating candidates that do not yet have a yield attributed to it.
def evaluate_experiments(domain, candidates):
    return create_experiments(domain, candidates=candidates)

# create some trial experiments (at unitform random)
candidates = create_candidates(domain, nsamples=4)

candidates

	Temperature	Solvent Volume	Solvent Type
0	8.047811	65.086742	MeOH
1	41.943820	46.326231	MeOH
2	38.748141	73.598594	THF
3	48.381604	26.914358	THF

# we can evaluate the yield of those candidates
experiments = evaluate_experiments(domain, candidates)

experiments

	Temperature	Solvent Volume	Yield	Solvent Type	valid_Yield
0	8.047811	65.086742	14.006259	MeOH	1.0
1	41.943820	46.326231	29.722196	MeOH	1.0
2	38.748141	73.598594	27.228968	THF	1.0
3	48.381604	26.914358	34.273478	THF	1.0

Strategy Setup

a BO Strategy requires a choice of an acquisition function in order to evaluate the quality of new trial candidates.

In this example we’ll use the popular Expected Improvement (EI) acqf, which can evaluate the expectation value for obtaining a better function value compared to the current best value by utilizing the regression models’ prediction of botht the function value as well as the variance at that point.

import bofire.strategies.api as strategies
from bofire.data_models.acquisition_functions.api import qLogEI
from bofire.data_models.strategies.api import SoboStrategy

# a single objective BO strategy

sobo_strategy_data_model = SoboStrategy(
    domain=domain,
    acquisition_function=qLogEI(),
)

# map the strategy data model to the actual strategy that has functionality
sobo_strategy = strategies.map(sobo_strategy_data_model)

# first we fit the model of the strategy

sobo_strategy.tell(experiments)

Each implemented strategy has a strategy.ask(n) method implemented, where new experiment candidates can be fetched from.

# uncomment and run me to see what's happening!
# sobo_strategy.ask(1)

Since a BO strategy requires an underlying regression model for predictions, it requires a certain amount of initial experiments for it to be able to build such a model.

In order to obtain initial experiments, one way is to (pseudo)randomly sample candidate points in the reaction domain. This can e.g. be done by the RandomStrategy.

# a random strategy
from bofire.data_models.strategies.api import RandomStrategy as RandomStrategyModel


random_strategy_model = RandomStrategyModel(domain=domain)
# we have to provide the strategy with our optimization problem so it knows where to sample from.
random_strategy = strategies.map(random_strategy_model)

domain

Domain(type='Domain', inputs=Inputs(type='Inputs', features=[ContinuousInput(type='ContinuousInput', key='Temperature', unit='°C', bounds=[0.0, 60.0], local_relative_bounds=None, stepsize=None, allow_zero=False), CategoricalInput(type='CategoricalInput', key='Solvent Type', categories=['MeOH', 'THF', 'Dioxane'], allowed=[True, True, True]), ContinuousInput(type='ContinuousInput', key='Solvent Volume', unit=None, bounds=[20.0, 90.0], local_relative_bounds=None, stepsize=None, allow_zero=False)]), outputs=Outputs(type='Outputs', features=[ContinuousOutput(type='ContinuousOutput', key='Yield', unit=None, objective=MaximizeObjective(type='MaximizeObjective', w=1.0, bounds=[0, 1]))]), constraints=Constraints(type='Constraints', constraints=[]))

# let's ask for five random sets of conditions
candidates = random_strategy.ask(5)

you can have a look at the candidates

candidates

	Solvent Volume	Temperature	Solvent Type
0	21.793877	36.519225	Dioxane
1	83.355087	6.630274	Dioxane
2	43.504438	31.622440	MeOH
3	82.105782	32.077149	MeOH
4	31.768016	49.445162	THF

In order to use those experiments as data foundation of the bo strategy above, the output values of these candidates have to be provided. Herein we’ll use a dummy function to evaluate some more or less realistic yields given the proposed input candidates as.

experiments = evaluate_experiments(domain, candidates)

experiments

	Temperature	Solvent Volume	Yield	Solvent Type	valid_Yield
0	36.519225	21.793877	20.232950	Dioxane	1.0
1	6.630274	83.355087	10.600051	Dioxane	1.0
2	31.622440	43.504438	22.199821	MeOH	1.0
3	32.077149	82.105782	26.900057	MeOH	1.0
4	49.445162	31.768016	34.780706	THF	1.0

note, that the columns Yield and valid_Yield have been added. Yield contains the actual output, whereas valid_Yield labels the experiment as valid w.r.t. this respective measured output.

This info can now be given to the bo strategy so it can use it to fit the underlying regression model it utilizes via the strategy.tell() method.

t1 = time.time()
sobo_strategy.tell(experiments, replace=True, retrain=True)
print(f"fit took {(time.time()-t1):.2f} seconds")

fit took 1.47 seconds

Using this data we can now get a proposal for a next point to evaluate via the sobo_strategy.ask(1) method.

t1 = time.time()
new_candidate = sobo_strategy.ask(1)
print(f"SOBO step took {(time.time()-t1):.2f} seconds")

SOBO step took 0.98 seconds

This ask call now takes way longer, since first a GP model is fitted to the data, and the acquisition function EI is optimized to obtain the new proposed candidates. Note that the predictied yield and standard deviation, as well as desirability function value (the underlying value the optimizer sees) are provided in the new_candidate dataframe.

new_candidate

	Solvent Volume	Temperature	Solvent Type	Yield_pred	Yield_sd	Yield_des
0	76.8674	49.854768	THF	33.18856	5.631846	33.18856

Optimization Loop

With this strategy.ask() and strategy.tell() we can now do our optimization loop, where after each new proposal, the conditions obtained from ask are evaluated and added to the known datapoints via tell. This requires to refit the underling model in each step.

experimental_budget = 10
i = 0
# in case of smoke_test we don't run the actual optimization loop ...
done = False if not SMOKE_TEST else True

while not done:
    i += 1
    t1 = time.time()
    # ask for a new experiment
    new_candidate = sobo_strategy.ask(1)
    new_experiment = evaluate_experiments(domain, new_candidate)
    sobo_strategy.tell(new_experiment)
    print(f"Iteration took {(time.time()-t1):.2f} seconds")
    # inform the strategy about the new experiment
    # experiments = pd.concat([experiments,new_experiment],ignore_index=True)
    if i > experimental_budget:
        done = True

investigating results

# you have access to the experiments here
sobo_strategy.experiments

	Temperature	Solvent Volume	Yield	Solvent Type	valid_Yield
0	36.519225	21.793877	20.232950	Dioxane	True
1	6.630274	83.355087	10.600051	Dioxane	True
2	31.622440	43.504438	22.199821	MeOH	True
3	32.077149	82.105782	26.900057	MeOH	True
4	49.445162	31.768016	34.780706	THF	True

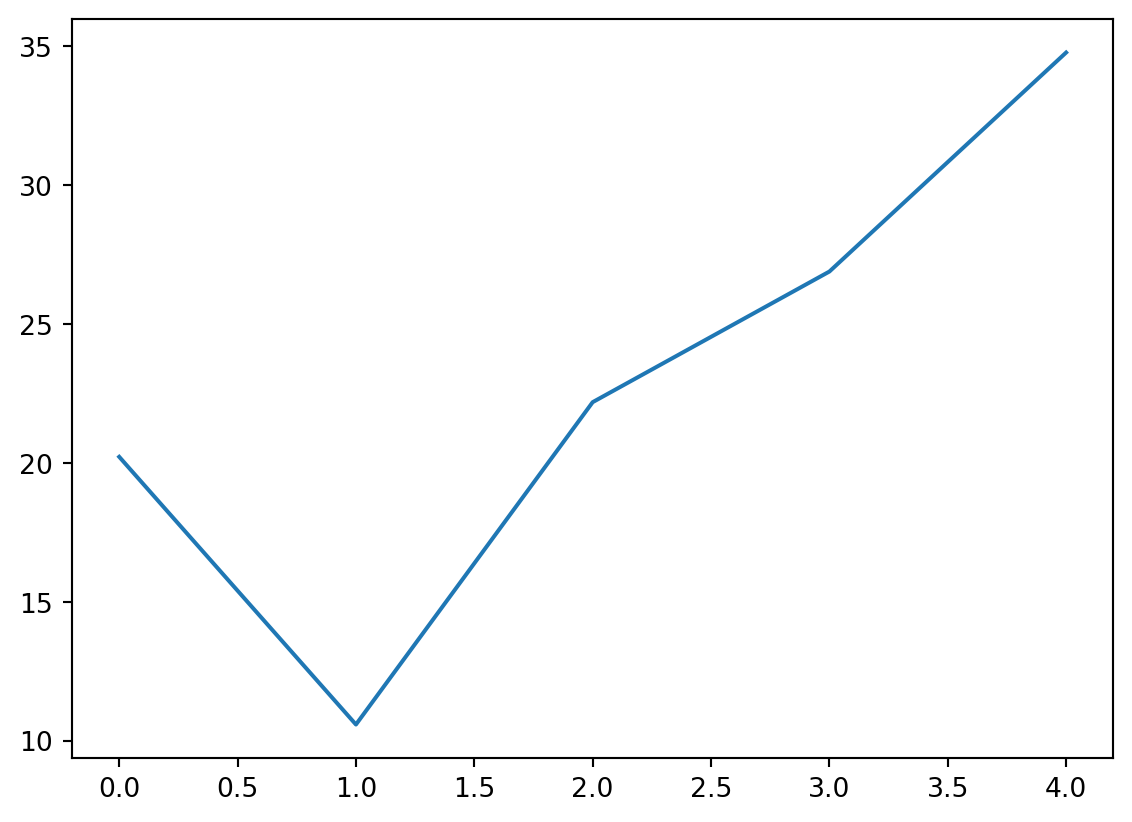

# quick plot of yield vs. Iteration
sobo_strategy.experiments["Yield"].plot()

--- title: 'Getting started by Example: Optimization of Reaction Conditions' jupyter: python3 --- In this example we take on a reaction condition optimization problem: Suppose you have some simple reaction where two ingredients **A** and **B** react to **C**. Our reactors can be temperature controlled, and we can use different solvents. Furthermore, we can dilute our reaction mixture by using a different solvent volume. parameters like the **temperature** or the **solvent volume** are **continuous parameters**, where we have to set lower and upper bounds for. The **temperature** can be controlled between 0 and 60°C and the **solvent volume** between 20 and 90 ml. Parameters like the use of **which solvent**, where there's a choice of either this or that, are **categorical parameters**. Here we can choose between MeOH, THF and Dioxane. For now we only wish top optimize the Reaction yield, making this a **single objective optimization problem**. Below we'll see how to perform such an optimization using bofire, Utilizing a **Single Objective Bayesian Optimization (SOBO)** Strategy ```{python} #| papermill: {duration: 0.210689, end_time: '2024-10-10T20:34:26.917287', exception: false, start_time: '2024-10-10T20:34:26.706598', status: completed} #| tags: [] # python imports we'll need in this notebook import os import time import numpy as np import pandas as pd SMOKE_TEST = os.environ.get("SMOKE_TEST") print(f"SMOKE_TEST: {SMOKE_TEST}") ``` ## Setting up the optimization problem as a **Reaction Domain** ```{python} #| papermill: {duration: 0.921772, end_time: '2024-10-10T20:34:27.849418', exception: false, start_time: '2024-10-10T20:34:26.927646', status: completed} #| tags: [] from bofire.data_models.domain.api import Domain, Inputs, Outputs from bofire.data_models.features.api import ( # we won't need all of those. CategoricalInput, ContinuousInput, ContinuousOutput, ) ``` ```{python} #| papermill: {duration: 0.007176, end_time: '2024-10-10T20:34:27.860020', exception: false, start_time: '2024-10-10T20:34:27.852844', status: completed} #| tags: [] # We wish the temperature of the reaction to be between 0 and 60 °C temperature_feature = ContinuousInput(key="Temperature", bounds=[0.0, 60.0], unit="°C") # Solvent Amount solvent_amount_feature = ContinuousInput(key="Solvent Volume", bounds=[20, 90]) # we have a couple of solvents in stock, which we'd like to use solvent_type_feature = CategoricalInput( key="Solvent Type", categories=["MeOH", "THF", "Dioxane"], ) # gather all individual features input_features = Inputs( features=[ temperature_feature, solvent_type_feature, solvent_amount_feature, ], ) ``` ```{python} #| papermill: {duration: 0.006197, end_time: '2024-10-10T20:34:27.869334', exception: false, start_time: '2024-10-10T20:34:27.863137', status: completed} #| tags: [] # outputs: we wish to maximize the Yield # import Maximize Objective to tell the optimizer you wish to optimize from bofire.data_models.objectives.api import MaximizeObjective objective = MaximizeObjective( w=1.0, ) yield_feature = ContinuousOutput(key="Yield", objective=objective) # create an output feature output_features = Outputs(features=[yield_feature]) ``` ```{python} #| papermill: {duration: 0.008099, end_time: '2024-10-10T20:34:27.880635', exception: false, start_time: '2024-10-10T20:34:27.872536', status: completed} #| tags: [] objective ``` ```{python} #| papermill: {duration: 0.005817, end_time: '2024-10-10T20:34:27.889720', exception: false, start_time: '2024-10-10T20:34:27.883903', status: completed} #| tags: [] # we now have print("input_features:", input_features) print("output_features:", output_features) ``` ```{python} #| papermill: {duration: 0.005937, end_time: '2024-10-10T20:34:27.898917', exception: false, start_time: '2024-10-10T20:34:27.892980', status: completed} #| tags: [] # The domain is now the object that holds the entire optimization problem / problem definition. domain = Domain( inputs=input_features, outputs=output_features, ) ``` ```{python} #| papermill: {duration: 0.009917, end_time: '2024-10-10T20:34:27.912045', exception: false, start_time: '2024-10-10T20:34:27.902128', status: completed} #| tags: [] # you can now have a pretty printout of your domain via (domain.inputs + domain.outputs).get_reps_df() ``` ```{python} #| papermill: {duration: 0.006322, end_time: '2024-10-10T20:34:27.921761', exception: false, start_time: '2024-10-10T20:34:27.915439', status: completed} #| tags: [] # and you can access your domain features via for ( feature_key ) in domain.inputs.get_keys(): # this will get all the feature names and loop over them input_feature = domain.inputs.get_by_key( feature_key, ) # we can extract the individual feature object by asking for it by name print(feature_key, "|", input_feature) ``` ```{python} #| papermill: {duration: 0.006648, end_time: '2024-10-10T20:34:27.931785', exception: false, start_time: '2024-10-10T20:34:27.925137', status: completed} #| tags: [] # as well as the output features as # and you can access your domain features via for feature_key in ( domain.outputs.get_keys() ): # this will get all the feature names and loop over them output_feature = domain.outputs.get_by_key( feature_key, ) # we can extract the individual feature object by asking for it by name print(feature_key, " | ", output_feature.__repr__()) ``` ```{python} #| papermill: {duration: 0.00833, end_time: '2024-10-10T20:34:27.943616', exception: false, start_time: '2024-10-10T20:34:27.935286', status: completed} #| tags: [] (domain.inputs + domain.outputs).get_reps_df() ``` ### Import a toy Reaction to play around with We've prepared a reaction emulator, which you can use to emulate a real experiment below. ```{python} #| papermill: {duration: 0.010871, end_time: '2024-10-10T20:34:27.965156', exception: false, start_time: '2024-10-10T20:34:27.954285', status: completed} #| tags: [] # Reaction Optimization Notebook util code T0 = 25 T1 = 100 e0 = np.exp((T1 + 0) / T0) e60 = np.exp((T1 + 60) / T0) de = e60 - e0 boiling_points = { # in °C "MeOH": 64.7, "THF": 66.0, "Dioxane": 101.0, } density = { # in kg/l "MeOH": 0.792, "THF": 0.886, "Dioxane": 1.03, } # create dict from individual dicts descs = { "boiling_points": boiling_points, "density": density, } solvent_descriptors = pd.DataFrame(descs) # these functions are for faking real experimental data ;) def calc_volume_fact(V): # 20-90 # max at 75 = 1 # min at 20 = 0.7 # at 90=0.5 x = (V - 20) / 70 x = 0.5 + (x - 0.75) * 0.1 + (x - 0.4) ** 2 return x def calc_rhofact(solvent_type, Tfact): # between 0.7 and 1.1 x = solvent_descriptors["density"][solvent_type] x = (1.5 - x) * (Tfact + 0.5) / 2 return x.values def calc_Tfact(T): x = np.exp((T1 + T) / T0) return (x - e0) / de # this can be used to create a dataframe of experiments including yields def create_experiments(domain, nsamples=100, A=25, B=90, candidates=None): Tf = domain.inputs.get_by_key("Temperature") Vf = domain.inputs.get_by_key("Solvent Volume") typef = domain.inputs.get_by_key("Solvent Type") yf = domain.outputs.get_by_key("Yield") if candidates is None: T = np.random.uniform(low=Tf.lower_bound, high=Tf.upper_bound, size=(nsamples,)) V = np.random.uniform(low=Vf.lower_bound, high=Vf.upper_bound, size=(nsamples,)) solvent_types = [ domain.inputs.get_by_key("Solvent Type").categories[np.random.randint(0, 3)] for i in range(nsamples) ] else: nsamples = len(candidates) T = candidates["Temperature"].values V = candidates["Solvent Volume"].values solvent_types = candidates["Solvent Type"].values Tfact = calc_Tfact(T) rhofact = calc_rhofact(solvent_types, Tfact) Vfact = calc_volume_fact(V) y = A * Tfact + B * rhofact y = 0.5 * y + 0.5 * y * Vfact # y = y.values samples = pd.DataFrame( { Tf.key: T, Vf.key: V, yf.key: y, typef.key: solvent_types, "valid_" + yf.key: np.ones(nsamples), }, # index=pd.RangeIndex(nsamples), ) samples.index = pd.RangeIndex(nsamples) return samples def create_candidates(domain, nsamples=4): experiments = create_experiments(domain, nsamples=nsamples) candidates = experiments.drop(["Yield", "valid_Yield"], axis=1) return candidates # this is for evaluating candidates that do not yet have a yield attributed to it. def evaluate_experiments(domain, candidates): return create_experiments(domain, candidates=candidates) ``` ```{python} #| papermill: {duration: 0.008312, end_time: '2024-10-10T20:34:27.977268', exception: false, start_time: '2024-10-10T20:34:27.968956', status: completed} #| tags: [] # create some trial experiments (at unitform random) candidates = create_candidates(domain, nsamples=4) ``` ```{python} #| papermill: {duration: 0.008066, end_time: '2024-10-10T20:34:27.988909', exception: false, start_time: '2024-10-10T20:34:27.980843', status: completed} #| tags: [] candidates ``` ```{python} #| papermill: {duration: 0.007149, end_time: '2024-10-10T20:34:27.999898', exception: false, start_time: '2024-10-10T20:34:27.992749', status: completed} #| tags: [] # we can evaluate the yield of those candidates experiments = evaluate_experiments(domain, candidates) ``` ```{python} #| papermill: {duration: 0.008327, end_time: '2024-10-10T20:34:28.011940', exception: false, start_time: '2024-10-10T20:34:28.003613', status: completed} #| tags: [] experiments ``` # Strategy Setup a BO Strategy requires a choice of an acquisition function in order to evaluate the quality of new trial candidates. In this example we'll use the popular **Expected Improvement (EI)** acqf, which can evaluate the expectation value for obtaining a better function value compared to the current best value by utilizing the regression models' prediction of botht the function value as well as the variance at that point. ```{python} #| papermill: {duration: 1.870962, end_time: '2024-10-10T20:34:29.893823', exception: false, start_time: '2024-10-10T20:34:28.022861', status: completed} #| tags: [] import bofire.strategies.api as strategies from bofire.data_models.acquisition_functions.api import qLogEI from bofire.data_models.strategies.api import SoboStrategy ``` ```{python} #| papermill: {duration: 0.009449, end_time: '2024-10-10T20:34:29.907268', exception: false, start_time: '2024-10-10T20:34:29.897819', status: completed} #| tags: [] # a single objective BO strategy sobo_strategy_data_model = SoboStrategy( domain=domain, acquisition_function=qLogEI(), ) # map the strategy data model to the actual strategy that has functionality sobo_strategy = strategies.map(sobo_strategy_data_model) ``` ```{python} #| papermill: {duration: 0.279707, end_time: '2024-10-10T20:34:30.190843', exception: true, start_time: '2024-10-10T20:34:29.911136', status: failed} #| tags: [] # first we fit the model of the strategy sobo_strategy.tell(experiments) ``` Each implemented strategy has a `strategy.ask(n)` method implemented, where new experiment candidates can be fetched from. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] # uncomment and run me to see what's happening! # sobo_strategy.ask(1) ``` Since a BO strategy requires an underlying regression model for predictions, it requires a certain amount of initial experiments for it to be able to build such a model. In order to obtain initial experiments, one way is to (pseudo)randomly sample candidate points in the reaction domain. This can e.g. be done by the RandomStrategy. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] # a random strategy from bofire.data_models.strategies.api import RandomStrategy as RandomStrategyModel random_strategy_model = RandomStrategyModel(domain=domain) # we have to provide the strategy with our optimization problem so it knows where to sample from. random_strategy = strategies.map(random_strategy_model) ``` ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] domain ``` ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] # let's ask for five random sets of conditions candidates = random_strategy.ask(5) ``` you can have a look at the candidates ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] candidates ``` In order to use those experiments as data foundation of the bo strategy above, the output values of these candidates have to be provided. Herein we'll use a dummy function to evaluate some more or less realistic yields given the proposed input candidates as. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] experiments = evaluate_experiments(domain, candidates) ``` ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] experiments ``` note, that the columns `Yield` and `valid_Yield` have been added. `Yield` contains the actual output, whereas `valid_Yield` labels the experiment as valid w.r.t. this respective measured output. This info can now be given to the bo strategy so it can use it to fit the underlying regression model it utilizes via the `strategy.tell()` method. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] t1 = time.time() sobo_strategy.tell(experiments, replace=True, retrain=True) print(f"fit took {(time.time()-t1):.2f} seconds") ``` Using this data we can now get a proposal for a next point to evaluate via the `sobo_strategy.ask(1)` method. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] t1 = time.time() new_candidate = sobo_strategy.ask(1) print(f"SOBO step took {(time.time()-t1):.2f} seconds") ``` This ask call now takes way longer, since first a GP model is fitted to the data, and the acquisition function **EI** is optimized to obtain the new proposed candidates. Note that the predictied yield and standard deviation, as well as desirability function value (the underlying value the optimizer sees) are provided in the new_candidate dataframe. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] new_candidate ``` ## Optimization Loop With this `strategy.ask()` and `strategy.tell()` we can now do our optimization loop, where after each new proposal, the conditions obtained from `ask` are evaluated and added to the known datapoints via `tell`. This requires to refit the underling model in each step. ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] experimental_budget = 10 i = 0 # in case of smoke_test we don't run the actual optimization loop ... done = False if not SMOKE_TEST else True while not done: i += 1 t1 = time.time() # ask for a new experiment new_candidate = sobo_strategy.ask(1) new_experiment = evaluate_experiments(domain, new_candidate) sobo_strategy.tell(new_experiment) print(f"Iteration took {(time.time()-t1):.2f} seconds") # inform the strategy about the new experiment # experiments = pd.concat([experiments,new_experiment],ignore_index=True) if i > experimental_budget: done = True ``` ### investigating results ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] # you have access to the experiments here sobo_strategy.experiments ``` ```{python} #| papermill: {duration: null, end_time: null, exception: null, start_time: null, status: pending} #| tags: [] # quick plot of yield vs. Iteration sobo_strategy.experiments["Yield"].plot() ```
